Specification：

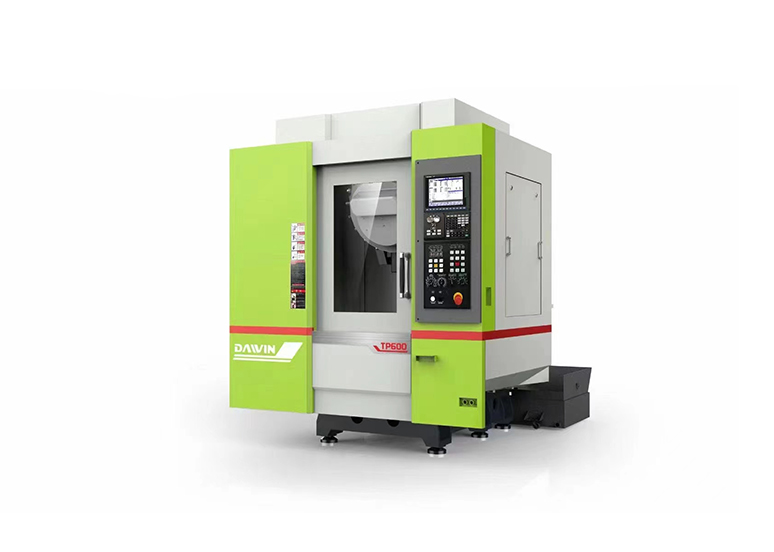

| Machine name | TP640 | Unit | |
| Worktop | Table size | 700*420 | mm |
| Maximum Permissible Load | 250 | kg | |
| T-slot dimensions | 14T*3 | mm | |
| Distance from spindle nose to table surface | 150-450 | mm | |
| Trip | X/Y/Z | 600*400*300 | mm |
| Principal Axis | Maximum spindle speed/taper shank | 20000rpm | rpm |
| Spindle diameter | Φ100 | mm | |
| Spindle taper shanks | BT30 | ||
| Spindle motor S1/S6 | 5.5 | KW | |
| Turning Force | 11.8/28.7 | N.M | |
| Rails | X/Y/ZWire Rails/Specifications | X-axis line rail 30X2 slider Y-axis line rail 30X2 slider Z-axis line rail 30X2 slider | mm |
| Screw | X/Y/Z Diameter/Pitch | XY/Φ28*8 Z/32*8 | mm |
| electrical machinery | X/Y/Z | 1.5/1.5/3.0 | KW |
| Automatic tool change system | Tool shank model | BT30 | |
| Type of tool magazine | Flip-up servo tool changer | ||
| Tool Selection | Bidirectional proximity knife selection | ||
| Tool magazine capacity | 21 | Grasp | |
| Maximum tool length | 300 | mm | |
| Maximum tool weight | 7 | kg | |
| tool change time（T-T） | 0.3 (Loose clamping tool by spindle, etc.) Factors vary slightly) | S | |
| Control System | Mitsubishi | M80A | M80A |
| Feed rate | X/Y/Z axis rapid traverse speed | 48/48/48 | m/min |
